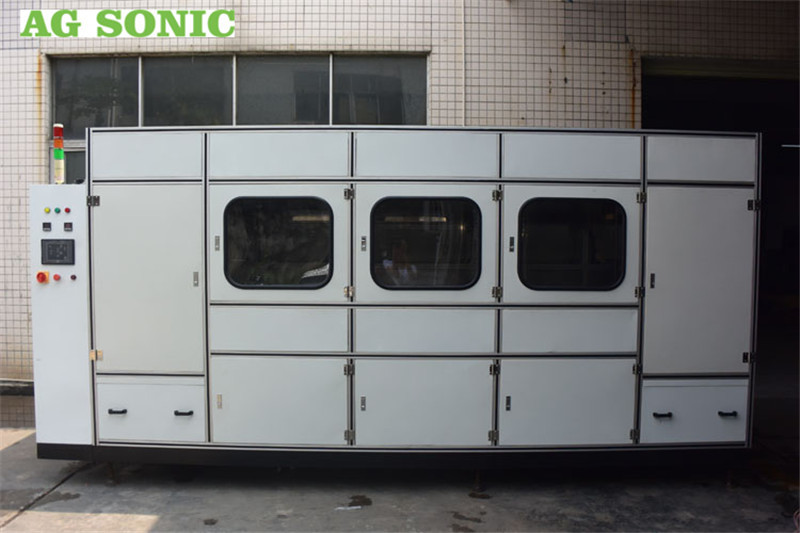

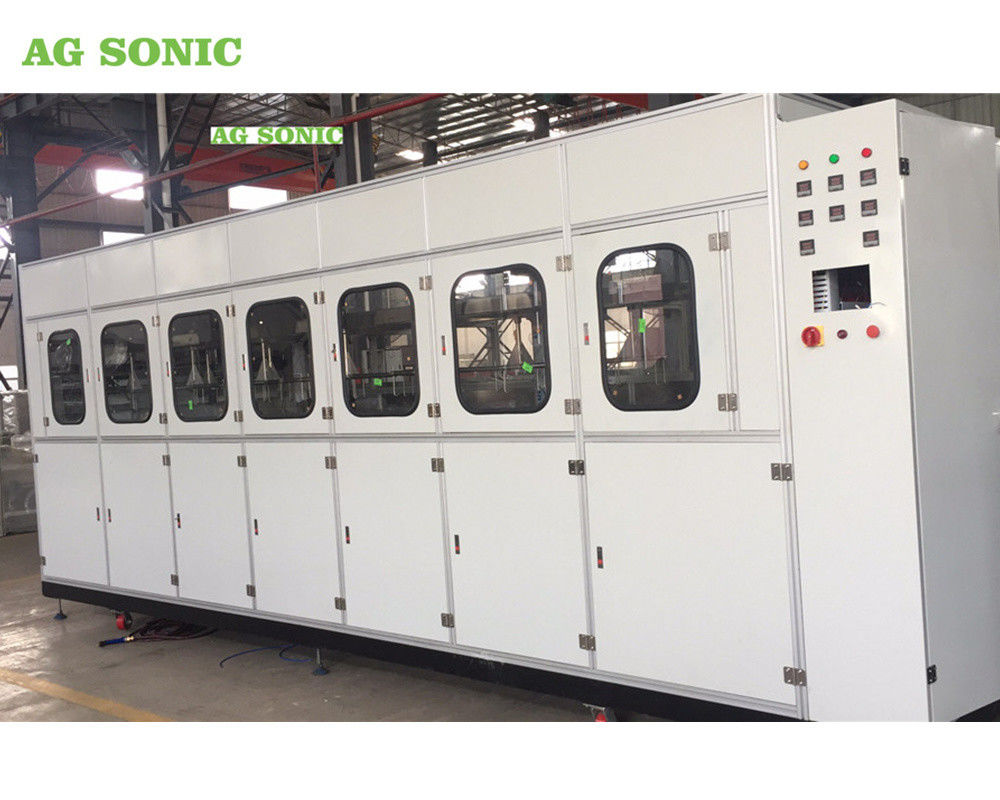

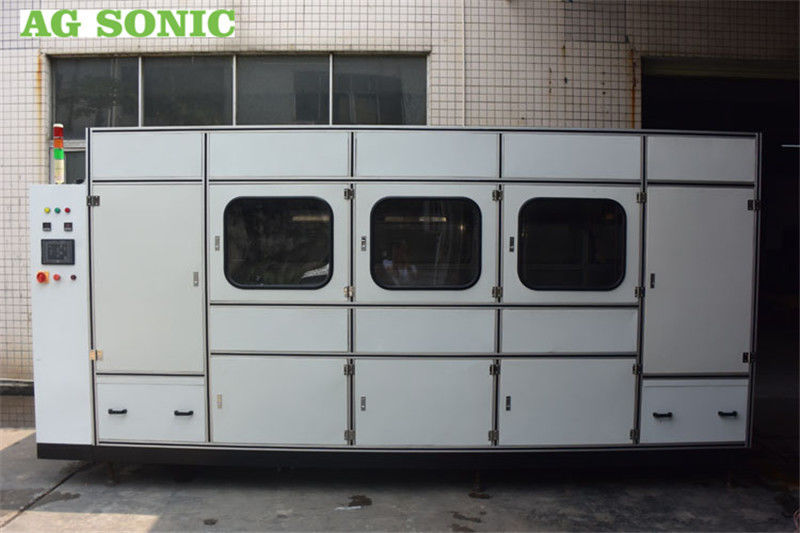

Digital Display Mechanical Arm Full-Automatic Cleaner For Industrial Cleaning Systems
System Design Features:
· Available in Several Standard Configurations. Standard Systems can be Manufactured to Meet Any 5-stage Processing Need.
· Most parts are Internally Mounted for Cleaner Exterior Appearance.
· All Components are Easily Accessed for Maintenance Operations.
· Available with Multiple Frequency Ultrasonic Systems.
· Digital Control Enclosure Provides Ease of Operation while Eliminating Potential Corrosion.
· Stainless Steel Construction.
· 38" Working Height.
Full-Automatic Cleaner 4tanks Ultrasonic Cleaning ,Rinsing ,Drying ,
Specification
| Model |
T-4120S |
| 1st Tank Volume |
264L Ultrasonic Cleaning tank with filtration cycle system |
| 2nd Tank Volume |
264L Ultrasonic Rinsng tank |
| 3rd Tank Volume |
264L Spray tank |
| 4th Tank Volume |
264L Drying tank |
| 1st tank size |
800X600X550mm |
| 2nd tank size |
800X600X550mm |
| 3rd Tank size |
800X600X550mm |
| 4th tank size |
800X600X550mm |
| Transducers |
60pcs in 1st tank; 60pcs in 2nd tank |
| Ultrasonic Power |
3000W*2 |
| Heating Power of Ultrasonic tank |
6000W*2 |
| Heating Power of Drying tank |
750W |
| Frenquency |
28KHz/40KHz |
| Drying System |
1 set |
| Unit size |
3060*1400*1150mm |
| Packing size |
3120*1460*1270mm |
| Timer |
0~99 minutes adjustable |
| Heater |
Room temperature~99℃ adjustable |
| Material |
SUS 304 default, can be SUS 316 |
| Power Supply |
AC 220V 3 phase ; AC 380V 3 phase |
| N.W. |
500G |
| G.W. |
550KG Wrapped by film in wooden case |
| Lead time |
18 working days |
| Warranty |
1 year warranty period, technique support all time |
| Certificates |
CE, RoHS, FCC |
| Advantage |
Filter the dirty water; keep the water clear in tank; lower the frequency of changing water |
BATH 1: Pre-cleaning and Hot Degreasing
Complete removal of various forms of surface contamination
(oils, grease, sludge, residual fluids, etc...) by means of ultrasound and hot cleaning solutions.
BATH 2: Rinsing, Grease/Cleaning
Solution Removal
Rinsing of residual grease/dirt and cleaning solution from the component to avoid cross contamination of subsequent bath.
BATH 3: Corrosion Removal
Complete removal of the corrosion at 55˚C using ultrasound and a gentle, slightly acidic complex de-ruster. Suitable for hardened or polished surfaces.
BATH 4: Rinsing and Acid Neutralization
Residual acid and removed corrosion residue are rinsed off. Prepares component for final step.
BATH 5: Water Displacement and Preservation
Water displacement and passivating agents ensure that the metal surfaces do not rust upon exposure to air
ULTRASONIC CLEANING CHARACTERISTICS
Ultrasonic cleaning uses high frequency sound waves to generate cavitation in the liquid. The resulting energetic bubbles act on contaminants adhering to substrates like metals, plastics, glass, rubber, ceramic, etc. This action penetrates blind holes, cracks, and recesses to thoroughly remove all traces of contamination adhering or embedded on the solid surface. Contaminants can include dust, dirt, oil, pigments, grease, polishing compounds, flux agents, soot, and so on. Ultrasonic cleaning can be used for a wide range of workpiece shapes, sizes, and materials, and may not require the part to be disassembled prior to cleaning
