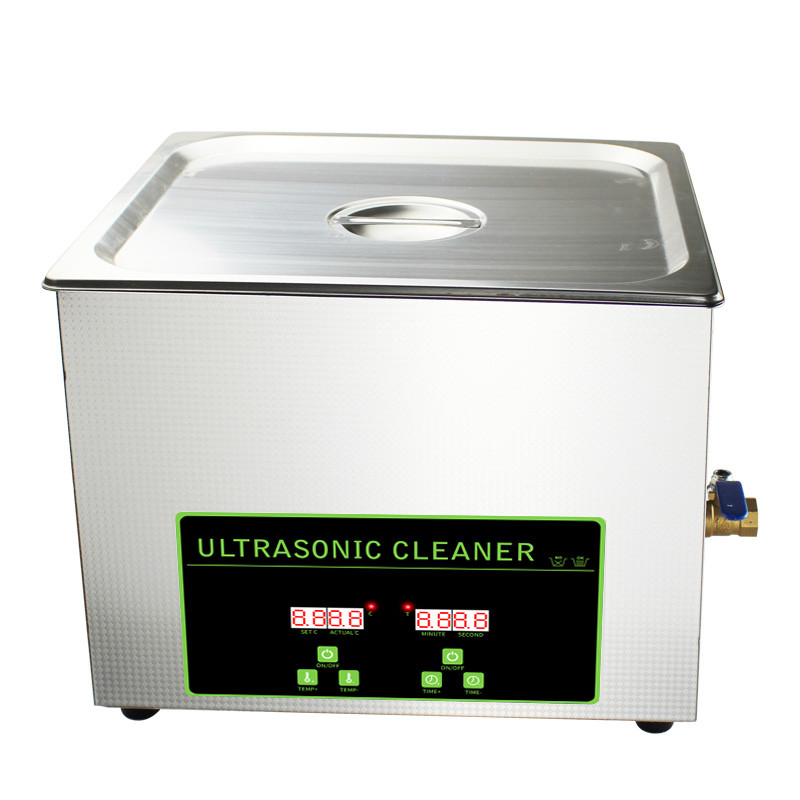

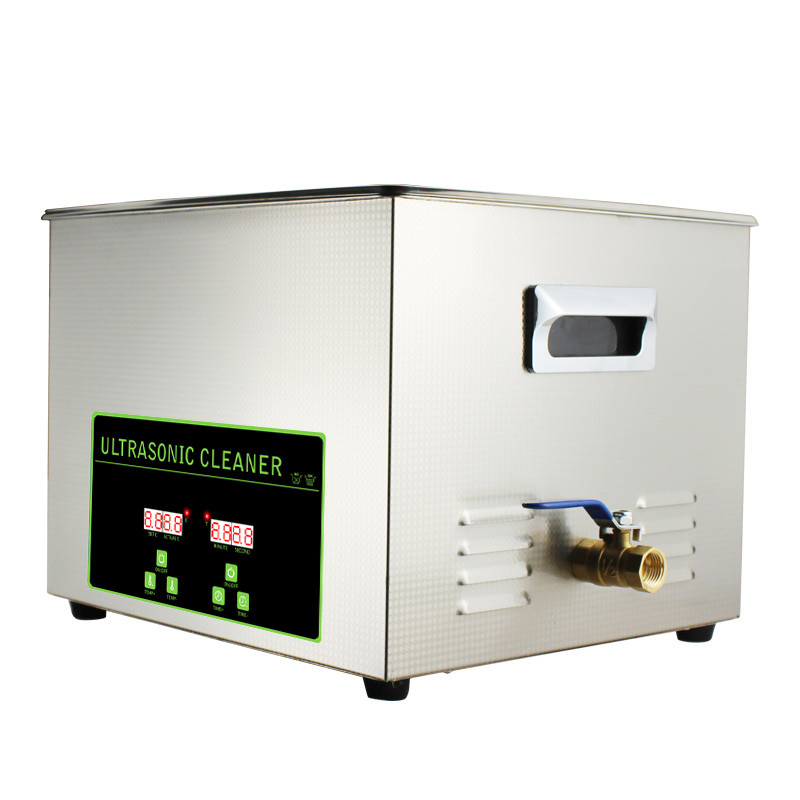

Lab Instrument Ultrasonic Cleaner 15L Stainless Steel Mechanical Knob Switch

Ultrasonic Cleaners

An ultrasonic cleaner is the ideal method for cleaning and restoring delicate items, which makes jewelry a perfect candidate for this methodology. Day-to-day dirt and grime, oily residues and even jewelers rouge (a compound for cleaning and buffing jewelry) can be removed from the tiny crevices and hidden passageways of these items. This cleaning method is ideal because the equipment can be adjusted to the proper ratio and frequency required to clean but not damage items. This is one of the top benefits of

We also design and manufacture custom systems for unique applications and can provide components to convert or upgrade an existing tank. Whether you need a system to clean bearings or ceramics, ophthalmic precision lenses or mechanical manufacturing assemblies, we have a system that provides you with results.

laboratory ultrasonic cleaner, including High Frequency Desk-top Lab Ultrasonic Cleaner, Low Frequency Desk-top Lab Ultrasonic Cleaner with Heater and Low Frequency Desk-top Lab Ultrasonic Cleaner.

Product Description

Brief introduction of the tabletop ultrasonic cleaner:

Lowest-cost tabletop ultrasonic cleaning and parts washing equipment
Used to Remove Virtually Any Contaminant with the Proper Cleaning Agent
Oil, Coolant, Metal Chip and Fines Removal
For cleaning metal parts and most other precision cleaning
Parts cleaning, injection mold cleaning, ultrasonic degreasers, etc
Excellent ultrasonic performance
Tank capacity comes from 2-30L
Digital models > Mechanical models > power adjustable models

Laboratory Instrument Cleaning Water Bath Dental 30L Denture Lab Equipmen Sonicator

Medical Ultrasonic Cleaner

Effective sterilization requires effective Medical Ultrasonic Cleaner and when it comes to cleaning reusable instruments and equipment, our equipment & detergents meets the most demanding criteria. Our industrial ultrasonic cleaners are used to assist with the cleaning of instruments that cannot be adequately cleaned manually such as spiral wound instruments like biopsy forceps etc. The ultrasonic vibration at the frequency used for cleaning does not kill microorganisms and infective aerosols may be produced.Ultrasonic cleaners work by subjecting instruments to high frequency, high-energy sound waves. This causes the soil to be dislodged from instruments and drop to the bottom of the tank, or be sufficiently loosened that it will be removed during the rinsing process. The detergent used in the ultrasonic tank must be carefully selected in accordance with advice from the tank's manufacturer. Optimally it will be a neutral, low-foaming product and enzymatic cleaners will have enhanced benefits in this process.

Benefits of cleaning Medical Device with an ultrasonic cleaner
• The process reaches parts of the Medical Device that are extremely difficult to clean with traditional cleaning methods.
Medical Device gets completely clean, leaving it looking brand new.
• No need to disassemble the jewelry.
• Multiple pieces can be cleaned at once, saving time and money. Follow manufacturer recommendations for maximum pieces in your ultrasonic cleaner.
• Gentle cleaning does not damage delicate pieces and allows for cleaning as often as necessary.

Steps to cleaning Lab Medical Device with an ultrasonic cleaner
1. Fill chamber with cleaning solvent
2. Note that water must be hot. Ideally, you would use an ultrasonic cleaner with a heater.
3. Run a pre-cleaning cycle
4. Submerge Medical Device into cleaning solvent
5. Run the cleaning cycle
6. After the cycle is complete, remove the items from the parts basket and rinse the solution from the items
7. After rinsing brush the pieces with a soft-bristled brush. Paying special attention to brushing around the claws and crowns that hold the gemstones or diamonds in place.
8. Complete with a final rinse. Place the jewelry in water only and dry with a soft cloth once rinse cycle is complete.

Digital Lab Medical Ultrasonic Cleaner

Our digital series of medical ultrasonic cleaner is eqquiped with LED digital readouts of timer as well as temperature controller. The machines comes with micro-processor based ultrasonic generator which is installed within the cleaning machines thereby saving a lot of space and making it a benchtop cleaning applicaion machines.

Our digital medical ultrasonic cleaner holds upto- 25-30 liers of water capcity and can Clean all types of surgical instuments within 3-5 minutes of applications. The machine is very handy and easy to operate and come with a stainless steel mesh basket. We use SS body for all our machines makes.

Product specifications:

Model	Tank size	Unit size	Volume	Actual ultrasonic power	Rated ultrasonic power	Ultrasonic frequency	Heating power	Timer	Heating temperature
Model	LxWxH(mm)	LxWxH(mm)	(L)	(W)	(W)	(kHz)	(W)	(MIN)	(℃)
TB-50	150x135x100	175x160x210	2	50	60	40	150	1-30	0-80
TB-100	240x135x100	265x165x220	3.2	100	120		150
TB-150A	300x150x100	325x180x225	4.5	150	180		300
TB-150B	300x150x150	325x180x280	6.5	150	180		300
TB-200	300x240x150	325x265x280	10.8	200	240		450
TB-300	330x300x150	360x325x285	15	300	360		450
TB-400	500x300x150	530x325x285	22	400	480		600
TB-500	500x300x200	530x325x325	30	500	600		600

What is Cavitation

1. The water pressure (sound pressure) of the liquid changes when liquid is irradiated by ultrasonic wave.

2. This sound pressure grows big than static pressure, and a expanding force acts when sound pressure became negative pressure (decompression), and the gas which cleaning fluid breaks off and can dissolve in cleaning fluid becomes a nucleus, and there is almost the cavity of the vacuum. This phenomenon is called cavitations.

3. Because positive and negative pressure of the sound pressure are repeated in turn, and the cavity gradually grows up and it cannot endure compression of the positive pressure at last, and it is crushed instantly and becomes extinct, but a liquid molecule clashes at this time and produces by a big crash force

4. A dirt and garbage sticking the cleaning object are exfoliated by this crash force and can perform cleaning.Selection of low frequency ultrasonic oscillation by cleaning usage.By difference of oscillation mode and frequency, the strength of cavitations are different.
Choose oscillation mode and frequency by kind of materials and dirt (particle) of cleaning object.The feature of each oscillation mode 26 kHz Single frequency
Although there are much sound pressure irregularities to deep direction in liquid, it is suitable for mainly iron system metal cleaning because occurring cavitations are very strong.· 36 kHz SWEEP
There are little sound pressure irregularities to deep direction in liquid and is suitable for uniform cleaning of aluminum-based metal, glass, ceramics, etc.

Company Information

1. AG SONIC technology limited, which engaged in ultrasonic cleaner field for more than 10 years. And the main products are ultrasonic cleaner with different capacity.

2. AG SONIC is an original ultrasonic manufacturer with R&D, production and sales teams. Our engineer is engaged in the filed for more than 20 years, so we have improved PCB design for stable and durable industrial use. High quality product and good after-sales services are available from us.

3. Not only standard ultrasonic cleaner, any non-standard can be designed by engineer.

Suggestion and drawing are professional for you.

4. Welcome to visit our factory in Shenzhen, and we are appreciate for your suggestions and hope to conduct business cooperation.

Lab Instrument Digital Ultrasonic Cleaner 15L Stainless Steel Mechanical Knob Switch 0

Tag:

Place of Origin:	China
Brand Name:	AGSONIC
Certification:	CE
Model Number:	TB-300

Minimum Order Quantity:	1UNIT
Price:	negotiation
Packaging Details:	wooden case
Delivery Time:	10working days
Payment Terms:	T/T, Western Union
Supply Ability:	1000pcs / Month

Material:	Stainless Steel 304	Application:	Lab Ultrasonic Cleaner
Option:	Ultrasonic Cleaning	Industry:	Washer Tools
Ultrasonic Power:	50 W	Frequency:	20 To 40khz Frequency
Highlight:	Stainless Steel Digital Ultrasonic Cleaner , Digital Ultrasonic Cleaner 15L , Knob Switch Lab Ultrasonic Cleaner
